NetworkX Interface

NetworkX provides a graph-based representation perfect for analyzing molecular topology and connectivity patterns.

For more information about NetworkX, visit https://networkx.org/

[1]:

import ase.build
import networkx as nx
from IPython.display import display
from rdkit.Chem import Draw

import molify

NetworkX → ASE:

The networkx graph contains the positional and chemical infromation and can be easily converted to an ASE Atoms object:

[ ]:

# Create a simple molecule and convert to graph
water = molify.smiles2atoms("O")
water_graph = molify.ase2networkx(water)

print(
    f"Graph: {water_graph.number_of_nodes()} nodes, "
    f"{water_graph.number_of_edges()} edges"
)

# Convert back to ASE
water_back = molify.networkx2ase(water_graph)
print(f"\nBack to ASE: {water_back}")
print(f"Connectivity preserved: {'connectivity' in water_back.info}")
print(f"Number of bonds: {len(water_back.info['connectivity'])}")

NetworkX for Molecular Analysis

Graph Algorithms: Finding Cycles

[3]:

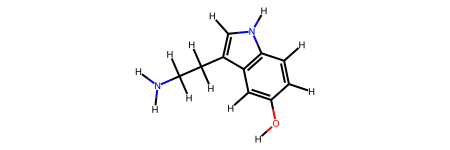

# Create serotonin (has cycles)
serotonin = molify.smiles2atoms("C1=CC2=C(C=C1O)C(=CN2)CCN")
serotonin_mol = molify.ase2rdkit(serotonin)

display(serotonin_mol)

# Analyze with NetworkX
graph = molify.ase2networkx(serotonin)
print(f"\nSerotonin: {graph.number_of_nodes()} atoms, {graph.number_of_edges()} bonds")
molify.draw_molecular_graph(graph)
_images/networkx_tools_5_0.png

Serotonin: 25 atoms, 26 bonds

[3]:
_images/networkx_tools_5_2.png
[4]:

# Find all cycles
cycles = nx.cycle_basis(graph)
print(f"Found {len(cycles)} cycles:\n")

for idx, cycle in enumerate(cycles):
    print(f"Cycle {idx + 1} ({len(cycle)} atoms): {cycle}")
    # Visualize each cycle
    display(Draw.MolToImage(serotonin_mol, highlightAtoms=cycle, size=(300, 200)))

Found 2 cycles:

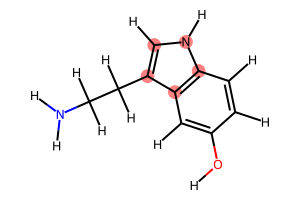

Cycle 1 (5 atoms): [3, 2, 9, 8, 7]
_images/networkx_tools_6_1.png

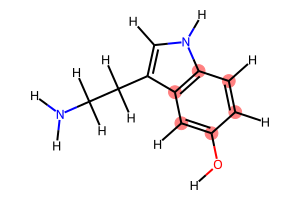

Cycle 2 (6 atoms): [3, 4, 5, 0, 1, 2]
_images/networkx_tools_6_3.png

Analyzing Multi-Molecule Systems

[ ]:

# Create a water/ethanol mixture
water = molify.smiles2conformers("O", numConfs=10)
ethanol = molify.smiles2conformers("CCO", numConfs=10)
box = molify.pack(data=[water, ethanol], counts=[5, 5], density=800)

# Convert to graph
box_graph = molify.ase2networkx(box)
print(
    f"System: {box_graph.number_of_nodes()} atoms, {box_graph.number_of_edges()} bonds"
)

System: 60 atoms, 50 bonds

[ ]:

from collections import Counter

# Find connected components (individual molecules)
components = list(nx.connected_components(box_graph))
print(f"Found {len(components)} separate molecules")

# Analyze molecule sizes
sizes = Counter(len(comp) for comp in components)
print("\nMolecule sizes:")
for size, count in sorted(sizes.items()):
    molecule_type = "water (H2O)" if size == 3 else "ethanol (C2H6O)"
    print(f"  {count} molecules with {size} atoms ({molecule_type})")

NetworkX → RDKit: Guessing Bond Orders from 3D Coordinates

Decision Tree: When Does Bond Order Determination Happen?

networkx2rdkit(graph, suggestions)
    ↓
Are all bond_orders present (not None)?
    ├─ YES → Simple conversion ✅
    └─ NO  → Bond order determination required ⚠️
           ↓
           Step 1: Try template matching with suggestions
           ↓
           Step 2: Fallback to rdkit.Chem.rdDetermineBonds
                   (tries charges: 0, ±1, ±2)

Let’s explore each case:

Case 1: Graph Has Explicit Bond Orders

When the graph comes from RDKit originally, all bond orders are known:

[7]:

# Create molecule with known bonds
acetone = molify.smiles2atoms("CC(=O)C")  # Has a C=O double bond
acetone_graph = molify.ase2networkx(acetone)

# Check bond orders
print("Bond orders in graph:")
for u, v, data in list(acetone_graph.edges(data=True))[:5]:
    print(f"  {u}-{v}: {data['bond_order']}")

# Convert to RDKit
acetone_mol = molify.networkx2rdkit(acetone_graph)
print("\nConversion successful:")
display(acetone_mol)

Bond orders in graph:
  0-1: 1.0
  0-4: 1.0
  0-5: 1.0
  0-6: 1.0
  1-2: 2.0

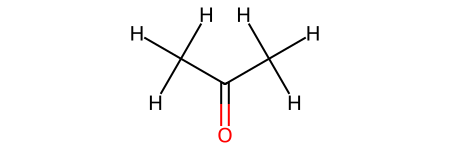

Conversion successful:
_images/networkx_tools_12_1.png

Case 2: Graph Has bond_order=None

[8]:

# Create ammonia from ASE (no connectivity info)
ammonia = ase.build.molecule("NH3")
print(f"Ammonia: {ammonia}")
print(f"Has connectivity: {'connectivity' in ammonia.info}")

# Convert to NetworkX - will have bond_order=None
ammonia_graph = molify.ase2networkx(ammonia)

print("\nGraph edge attributes:")
for u, v, data in ammonia_graph.edges(data=True):
    print(f"  N({u})-H({v}): bond_order = {data['bond_order']}")

Ammonia: Atoms(symbols='NH3', pbc=False)
Has connectivity: False

Graph edge attributes:
  N(0)-H(1): bond_order = None
  N(0)-H(2): bond_order = None
  N(0)-H(3): bond_order = None

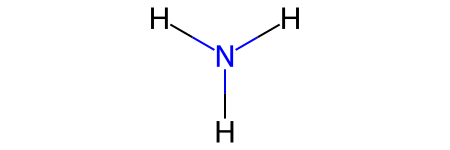

Converthing to rdkit with networkx2rdkit will run the bond order determination algorithm.

[9]:

# Convert to RDKit - triggers automatic bond order determination
ammonia_mol = molify.networkx2rdkit(ammonia_graph, suggestions=[])

display(ammonia_mol)
_images/networkx_tools_16_0.png
[10]:

SMILES = "OP(=O)(O)OP(=O)(O)OC=CC1C(O)C(OC2C(C(O)C(N3C=NC4=C3N=CN=C4N)O2)O)O1"

molecule = molify.smiles2atoms(SMILES)
molecule.info.pop("connectivity", None)  # Remove connectivity info
graph = molify.ase2networkx(molecule)

# the automatic bond order determination can fail for complex molecules
try:
    mol = molify.networkx2rdkit(graph, suggestions=[])
except ValueError as e:
    print(f"Conversion failed: {e}")

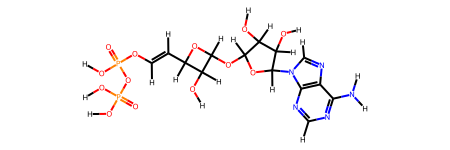

# but if we know the molecule, we can provide it as a suggestion
# You can also provide a list of suggestions for multiple molecules or multiple guesses
mol = molify.networkx2rdkit(graph, suggestions=[SMILES])
display(mol)
# For very large molecules, this can take a while!

Conversion failed: Failed to determine bonds for sub-structure up to charge -2.0 and ['O', 'P', 'O', 'O', 'O', 'P', 'O', 'O', 'O', 'C', 'C', 'C', 'C', 'O', 'C', 'O', 'C', 'C', 'C', 'O', 'C', 'N', 'C', 'N', 'C', 'C', 'N', 'C', 'N', 'C', 'N', 'O', 'O', 'O', 'H', 'H', 'H', 'H', 'H', 'H', 'H', 'H', 'H', 'H', 'H', 'H', 'H', 'H', 'H', 'H', 'H', 'H', 'H']
_images/networkx_tools_17_1.png

Key Takeaways

What We Learned

  1. NetworkX → ASE: Simple data transfer

  2. NetworkX graphs are great for:

    • Finding cycles (nx.cycle_basis)

    • Counting molecules (nx.connected_components)

    • Analyzing topology

  3. NetworkX → RDKit complexity depends on bond_order:

    • If all present → direct conversion

    • If any None → Bond order determination

  4. Bond order determination uses two steps:

    • Step 1: Template matching with suggestions (SMILES list)

    • Step 2: Fallback to rdkit.Chem.rdDetermineBonds

      • Tries charges: 0, ±1, ±2

      • Special handling for ions

  5. The “suggestions” parameter:

    • List of SMILES strings

    • Can be complete molecule or substructures

    • Helps ensure chemical correctness
