Advanced Atom Selection with SMARTS and Mapped SMILES

This notebook demonstrates the advanced atom selection capabilities in rdkit2ase, including support for mapped SMILES patterns and sophisticated hydrogen handling.

from rdkit.Chem import CombineMols, Draw

import rdkit2ase

Basic Atom Selection with SMARTS

The select_atoms_grouped function provides advanced atom selection capabilities beyond the basic match_substructure function. Let’s start with a simple example using ethanol.

# Create an ethanol molecule with explicit hydrogens
ethanol_smiles = "CCO"
ethanol_mol = rdkit2ase.ase2rdkit(rdkit2ase.smiles2atoms(ethanol_smiles))

# Display the molecule

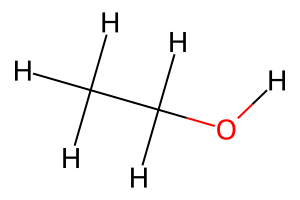

Draw.MolToImage(ethanol_mol, size=(300, 200))

# Select all carbon atoms using SMARTS
carbon_indices = rdkit2ase.select_atoms_grouped(ethanol_mol, "[#6]")
print(f"Carbon atom indices: {carbon_indices}")

# Select the oxygen atom
oxygen_indices = rdkit2ase.select_atoms_grouped(ethanol_mol, "[#8]")
print(f"Oxygen atom indices: {oxygen_indices}")

Carbon atom indices: [[0, 1]]
Oxygen atom indices: [[2]]

# if we have two molecules, they are returned as a list
# Select all carbon atoms using SMARTS. Indices are returned per molecule
carbon_indices = rdkit2ase.select_atoms_grouped(
    CombineMols(ethanol_mol, ethanol_mol), "[#6]"
)
print(f"Carbon atom indices: {carbon_indices}")

Carbon atom indices: [[0, 1], [9, 10]]

Hydrogen Handling Options

One of the key features is sophisticated hydrogen handling with three different modes: exclude (default), include, and isolated.

# Select the C-O bond pattern with different hydrogen handling
pattern = "CO"  # Carbon-Oxygen bond

# Default: exclude hydrogens
exclude_h = rdkit2ase.select_atoms_grouped(ethanol_mol, pattern, hydrogens="exclude")
print(f"Exclude hydrogens: {exclude_h}")

# Include hydrogens attached to matched heavy atoms
include_h = rdkit2ase.select_atoms_grouped(ethanol_mol, pattern, hydrogens="include")
print(f"Include hydrogens: {include_h}")

# Return only the hydrogens attached to matched heavy atoms
isolated_h = rdkit2ase.select_atoms_grouped(ethanol_mol, pattern, hydrogens="isolated")
print(f"Isolated hydrogens: {isolated_h}")

Exclude hydrogens: [[1, 2]]
Include hydrogens: [[1, 6, 7, 2, 8]]
Isolated hydrogens: [[6, 7, 8]]

Mapped SMILES Support and Atom Ordering

A powerful feature is support for mapped SMILES patterns, where only atoms with map numbers (e.g., [C:1]) are returned from the selection. New in this version: atoms are now returned in the order of their map numbers, providing predictable and controllable atom ordering.

# Using mapped SMILES to select only specific atoms
# This pattern matches the carbon-carbon-oxygen chain,
# but only returns the mapped carbons
mapped_pattern = "[C:1][C:2]O"
mapped_indices = rdkit2ase.select_atoms_grouped(ethanol_mol, mapped_pattern)
print(f"Mapped carbon indices: {mapped_indices}")

# Compare with unmapped pattern which returns all atoms in the match
unmapped_pattern = "CCO"
unmapped_indices = rdkit2ase.select_atoms_grouped(ethanol_mol, unmapped_pattern)
print(f"Unmapped pattern indices: {unmapped_indices}")

Mapped carbon indices: [[0, 1]]
Unmapped pattern indices: [[0, 1, 2]]

# Demonstrate atom ordering with mapped patterns
# Create alanine dipeptide for more complex example
aladip = rdkit2ase.smiles2atoms("CC(=O)NC(C)C(=O)NC")
aladip_mol = rdkit2ase.ase2rdkit(aladip)

# Select atoms in map order 1, 2, 3, 4
indices_1234 = rdkit2ase.select_atoms_grouped(
    aladip_mol, "CC(=O)N[C:1]([C:2])[C:3](=O)[N:4]C"
)
print(f"Map order 1,2,3,4: {indices_1234}")

# Select the same atoms but in different map order 4, 3, 2, 1
indices_4321 = rdkit2ase.select_atoms_grouped(
    aladip_mol, "CC(=O)N[C:4]([C:3])[C:2](=O)[N:1]C"
)
print(f"Map order 4,3,2,1: {indices_4321}")

Map order 1,2,3,4: [[4, 5, 6, 8]]
Map order 4,3,2,1: [[8, 6, 5, 4]]

Visualization of Selected Atoms

The visualize_selected_molecules function allows you to visualize molecules with highlighted atom selections. It accepts a variable length of indices, which can be used to highlight specific atoms in the molecule.

toluene_smiles = "Cc1ccccc1"  # Toluene
toluene_mol = rdkit2ase.ase2rdkit(rdkit2ase.smiles2atoms(toluene_smiles))

# Select different atom types
aromatic_carbons = rdkit2ase.select_atoms_grouped(toluene_mol, "c", hydrogens="exclude")
methyl_carbon = rdkit2ase.select_atoms_grouped(
    toluene_mol, "[C;!c]", hydrogens="exclude"
)

print(f"Aromatic carbons: {aromatic_carbons}")
print(f"Methyl carbon: {methyl_carbon}")

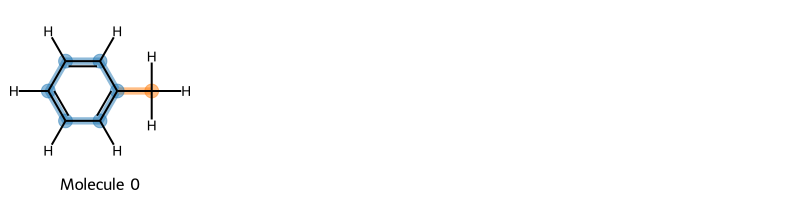

img = rdkit2ase.visualize_selected_molecules(
    toluene_mol, aromatic_carbons[0], methyl_carbon[0]
)

Aromatic carbons: [[1, 2, 3, 4, 5, 6]]
Methyl carbon: [[0]]

# Or multiple selections with custom parameters
multi_selection = rdkit2ase.visualize_selected_molecules(
    toluene_mol,
    rdkit2ase.select_atoms_grouped(toluene_mol, "c", hydrogens="exclude")[0],
    rdkit2ase.select_atoms_grouped(toluene_mol, "C", hydrogens="exclude")[0],
    rdkit2ase.select_atoms_grouped(toluene_mol, "c", hydrogens="isolated")[0],
    rdkit2ase.select_atoms_grouped(toluene_mol, "C", hydrogens="isolated")[0],
    mols_per_row=1,
    legends=["Toluene with highlights"],
)
print("Multi-selection visualization with custom parameters created")
multi_selection

Multi-selection visualization with custom parameters created

Advanced Example: Selecting Functional Groups

Let’s demonstrate a more complex example with a molecule containing multiple functional groups.

aspirin_smiles = "CC(=O)Oc1ccccc1C(=O)O"  # (aspirin)
aspirin_mol = rdkit2ase.ase2rdkit(rdkit2ase.smiles2atoms(aspirin_smiles))
# Display the molecule
rdkit2ase.visualize_selected_molecules(
    aspirin_mol,
    # functional group
    rdkit2ase.select_atoms_grouped(
        aspirin_mol, "[C:1][C:2](=O)[O:4]c1ccccc1C(=O)O", hydrogens="include"
    )[0],
    # double-bonded oxygen but without the carbon
    rdkit2ase.select_atoms_grouped(aspirin_mol, "[O:1]=C")[0],
    # hydrogens of the C-O-H group
    rdkit2ase.select_atoms_grouped(aspirin_mol, "CO", hydrogens="isolated")[0],
    mols_per_row=1,
    legends=["Aspirin with highlights"],
)
